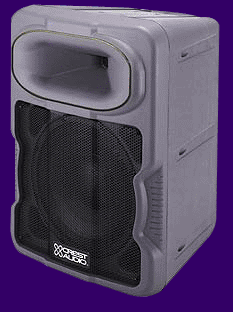

10" + CD Horn Sound
Reinforcement Speaker

Features

• trapezoidal 2-way enclosure

• 10" heavy-duty long throw woofer with water-resistant treated cone and dust cap

• 1.4" titanium diaphragm compression driver coupled to a 1" Quadratic Throat Horn molded to the cabinet

• dispersion pattern: 90 degrees H x 45 degrees V

• power handling: 500 Watts program; 1000 Watts peak

• sensitivity: 96 dB SPL

• frequency response: 74Hz - 18kHz +/-3dB

• internal passive crossover featuring a sophisticated, non-intrusive tweeter protection circuit and an advanced topology crossover with high performance components to provide high power handling and reliability (in addition, the crossover provides driver roll-off and protection, as well as EQ for the woofer and horn)

• 2 4-pin Neutrik jacks connected in parallel for signal input and daisy chaining capability

• stand mount and top & bottom flying point inserts

• dimensions: front--19.5" H x 14" W x 12.125"D weight: 30 lbs.

• available in dark grey or off-white

download spec sheet
