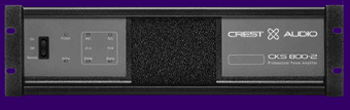

Power Processing Amplifier
CKS 800-2
Description
The CKS800-2 Power Processing amplifiers are designed specifically for the unique requirements of high-quality commercial and industrial sound installations. Design goals met by the CKS800-2 include exceptional sonic accuracy, high efficiency, minimum power consumption, comprehensive loudspeaker protection, and the ability to handle extended duty cycles. In addition, the CKS800-2 incorporate our proprietary modular approach--called Power Processing--to input/output and external control configuration.
Features
• Sequential turn-on/off (STO)
• PowerSave
• 3 module bays
• Cool operation
• "Overbuilt" power supply
• More transistors
• TourClass® protection circuits:
• ACL (active clip limiting) prevents speaker damage with gentle gain reduction at clip threshold
• IGM (instantaneous gain modulation) monitors connected loads to detect conditions that may overstress output devices, allowing safe operation into difficult loads
• AutoRamp gradually increases gain to attenuator setting level when amplifier is turned on
• TourClass also includes comprehensive thermal management; short circuit, DC voltage, turn-on/off transient, current inrush and sub/ultrasonic input protection
• Selectable input sensitivity/voltage gain (internal jumpers)
• UL certification
• Front panel status indication
• Rear panel attenuators with removable knobs
• Barrier strip input and output connectors
• Optional input isolation transformers
• Front panel label area
