AMC

Active Subwoofer B1-30

Affordable, relatively light, small in size, practical yet powerful, the AMC B1-30 direct-radiating active subwoofer was designed, originally, to enhance the excitement and realism of today's digital home theatre experience. It has, however, been field-proven to be equally competent in commercial fixed installs such as board, meeting, conference, reception rooms, karaoke lounges, lecture theatres and front foyers where equipment reliability is paramount. Its fundamental design features a built-in high-current discrete amplifier and a long-throw polypropylene driver.

Driven by a high-end 10" transducer and powered by a fully discrete 150-watt amplifier, the AMC B1-30 is optimized for low-frequency fill-ins to the overall programme material in small to large rooms. Essentially, the B1-30 extends the frequency response of a typical full-range or satellite loudspeaker system to include the critical low frequency effects and harmonic details which are necessary to ensure dynamism and realism, resulting in appreciably increased excitement for the listening audience.

The sophisticated amplifier design of the B1-30 features a protective dynamic soft-clipping circuitry that guards against overload and, therefore, distortion. Included is a selectable Auto-mute utility that automatically turns the subwoofer on when it senses the presence of a programme signal. Similarly, when no signal is present after a period of time, the logic-circuit mutes to "STAND-BY" the subwoofer automatically.

The incorporation of a continuously variable phase adjustment knob [phase correction between 0 through 180 degrees] provides for seamless integration with the other [main, front, overhead and/or surround] speakers in the system, providing maximum flexibility in the physical placement of this small but powerful subwoofer within the room. In addition, a continuously variable Low-pass Filter control - adjustable between 40 and 180 Hz - allows for a professionally optimized alignment of the audio system so as to seamlessly match and/or compensate the room acoustics and programme material.


Performance / Specifications

Frequency Response: 30 - 180Hz

Sensitivity: 89 dB

Continuous power:: 150W @100Hz, 4-ohm, 0.1% THD

Dynamic power: 250W (24 dBW)

THD @ rated power: 0.008%

Max. output current: >100A (1 mS)

S/N @ rated power: 100 dB

Phrase: 0 to 180 adjustable

LPF: 40Hz to 180Hz adjustable;

Butterworth type: -12 dB/octave<325Hz
Butterworth type: -24 dB/octave>325Hz

Woofer: 10" injection polypropylene cone

Internal volume: 30 litres

Design type: Bass-reflex / front port x 2

Dimension (W x H x D): 305 x 420 x 470mm

Weight: Nett - 20 Kg, Shipping (Gross) - 23 Kg

Finish: Black ash.



Features:

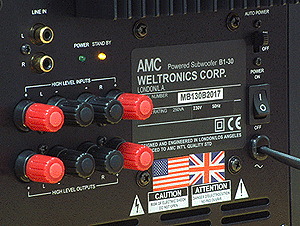

5-way gold-plated binding post-in/out

Stereo gold-plated RCA jack-line in

Continuously Adjustable, 0 to 180 degree

Auto-turn on/off

Soft-clipping facility

Captive power cord

One-piece fiberglass double side PCB

Master power switch
